Exclude EA content

The simplest way to create a document quickly is to link EA Packages with eaDocX sections. This pulls all the contents of the package into your document each time you re-generate it.

But what if there are things in the package which you don’t want to include?

One way to get the right content into your document would be to change what the EA package contains to suit your document. This is fine when you only want to pull one document from your EA model, but what if you want to create many different documents, for example, for different audiences?

Also, structuring your model to suit a particular document may make it harder for readers to understand your model, and make it harder to maintain.

eaDocX has several ways in which you can exclude EA content from your document.

Diagrams you never want to print

When you really get into EA, you’ll find that there are some diagrams you need to create which just exist to create links between elements in your model. These can end up as large, rather messy diagrams. They’re like the ‘working out’, rather than the public face of your model.

If you have diagrams like this, eaDocX lets you flag the diagram as one which should never be printed, in any eaDocX document. To do this, we’ve hi-jacked a part of EA.

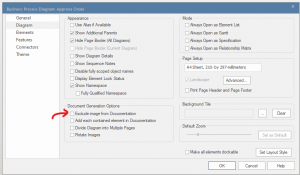

Right-click on any EA diagram. then select the Properties | Diagram page:

There’s a check box – Exclude image from Documentation – which EA uses to exclude the diagram from it’s own RTF generator. We’ve “borrowed” this setting for you to tell eaDocX much the same thing. It means “please don’t print this diagram – ever”.

If you select this box, then eaDocX will always exclude it.

Note: you may need to Refresh the eaDocX Preview page to show the exclusion has been set.

Tip:

When you create non-printable diagrams like this, we’ve found it helpful to make it obvious to readers of your model that they are intended to be non-printable. We usually put “(Hidden)” at the end of the diagram name, so this diagram should be called “Readme (Hidden)“

Excluding something from just one document

It may be that a Package, a diagram or even just a few elements shouldn’t appear in your document. Rather than change the structure of the EA model, eaDocX allows you to exclude individual EA items:

For example, suppose we find this in our EA Project Browser:

There’s a diagram at the top, which we’ve helpfully labeled as ‘Hidden’ so we’d expect that to be tagged as ‘excluded from all documents’ (see section above). Labeling diagrams as ‘hidden’ is a good habit to get into.

But there are a few other parts of the ‘Top Level Analysis’ package that we’d like not to appear in our document.

You can exclude:

• a package. This will exclude all the elements below it, including all other packages and their contents.
• a diagram – this means it won’t appear in this document, but may appear in others.
• an element. This will also exclude any child elements or diagrams.0

by clicking on the relevant content in the eaDocX Preview pane.

To exclude packages or elements, right click on the package or element icon and choose Exclude element, then either within this section or for whole document.

To exclude diagrams, right click on the diagram icon and choose diagram options>>exclude diagram.

After a bit of work, excluding various diagrams, packages and elements, the Preview Pane looks like this:

Although EA exclusions and “this document” exclusions are both shown with the same colored icon, the exclusion type is revealed when you hover the mouse over each red cross.

Excluding all instances of an EA Element

The above exclusions are fine for fine-tuning the contents of your document. But what if your document seems to include whole sets of EA elements which just aren’t needed. For example, your model may contain EA ‘Issue’ elements, scattered all through the model, but you don’t want them to appear in your document. Going through the whole model and excluding each one individually would be possible, if a bit tedious. But whenever we added a new Issue, we’d have to remember to go back to the document and exclude it. Not very practical.

eaDocX lets you do this by just deleting the EA element type from the profile for your document. If eaDocX doesn’t have any instructions (in the profile) of how to print a particular element, then it assumes you don’t want elements of that type to be printed.

So, if ‘Issue’ elements are appearing, then we just need to delete the ‘Issue Element’ definition from the document profile.

In the Profile page, right-click on the ‘Issue’ icon, and select ‘Delete Profile for element’.

This tells eaDocX that, for this document, whenever an ‘Issue’ element is found, just ignore it: if eaDocX doesn’t know how to format something, it won’t print it.

The options on this menu:

Refresh the Preview to show that the issues will not print.

(The ‘Issue’ elements are still visible, but grayed-out, to indicate they won’t be printed.)

Excluding All instances of a Stereotype

In this example, we removed the formatting for a whole type of element i.e. no Issues will print, regardless of their stereotype. Sometimes you need more fine-grained control over what is printed, so eaDocX allows you to creating formatting, and delete formatting, for stereotypes of elements, not just elements.

In this example, we have a package with two sorts of Requirement:

EA Package Browser:	eaDocX Preview

Suppose we don’t want to print the <<SecurityRequirement>>Requirements. We could select those requirements individually in the Preview page, and exclude them. But if we have lots of <<SecurityRequirement>>Requirements throughout the model, we can decide not to print them at all.

In the Profile page, select the ‘Requirements’ element type, and choose Create Profile for Stereotype.

This opens the Add Element Profile window.

The Available Stereotypes drop-down shows the available stereotypes of ‘Requirement’ in your model, and selecting the stereotype <<SecurityRequirement>> allows you to specify ‘None – do not print’.

This is a quick way to exclude all elements of one stereotype.
